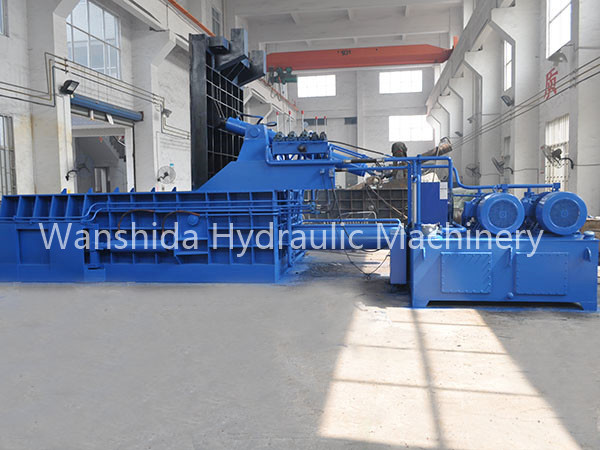

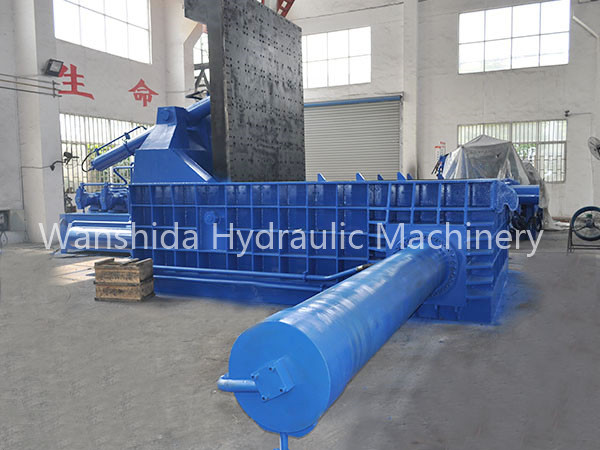

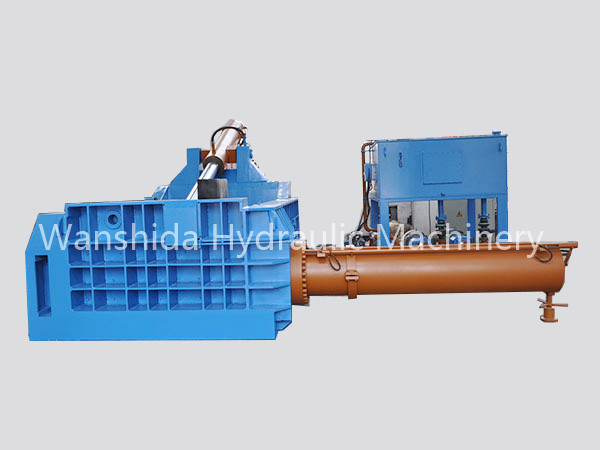

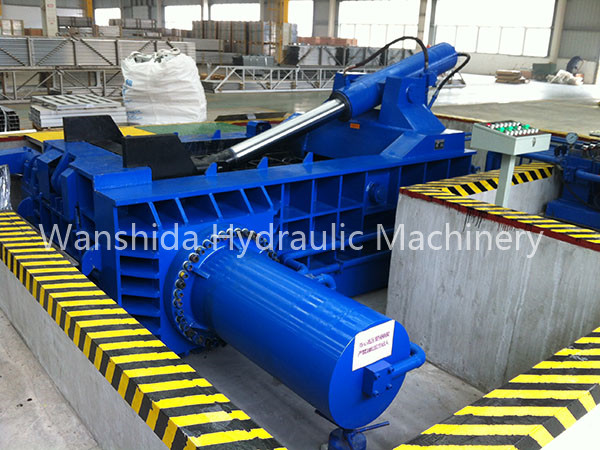

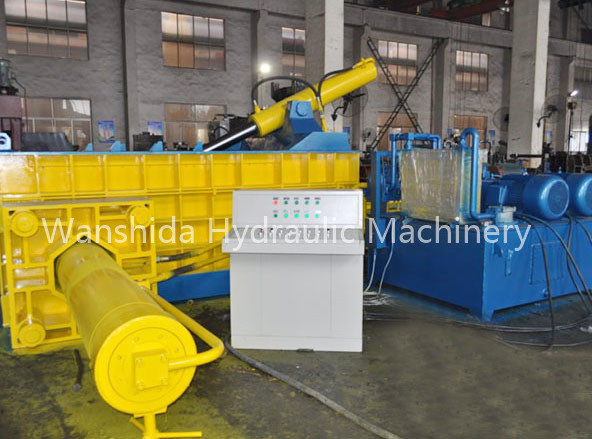

Y83/T 160t-800t Side push out / PLC

Applications:
Y83 series metal hydraulic baler is capable of extruding various metal leftover materials, steel paring, waste copper, aluminum, copper, stainless steel and scraped car materials into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation & refining costs, and increase transportation speed. Such baler is mainly used in steel plants, reclamation & processing industry and nonferrous & ferrous metal refining industry.

Features:

①Such machineries adopt hydraulic drives, with manual or PLC automatic control operation as options.
②The discharging types fall into turning over, push out, forward out and manual lifting.
③It is unnecessary to fix foot screws and a diesel engine can be used in case of power supply unavailability.
④The extrusion force ranges from 63t to 400t, totaling 10 grades for customers’ selection, and productivity being from 4t/shift to 40t/shift.
⑤The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.

Technical Specifications:

No.	Model	Nominal Force	Chamber size	Bale section	Power	Operation
1	Y83/T-160A	1600kN/160t	1600×1000×800mm	350×350mm	22/30kW	Manual Valve operation
1	Y83/T-160B	1600kN/160t	1600×1200×800mm	400×400mm	22/30kW	Manual Valve operation
2	Y83/T-200A	2000kN/200t	1600×1000×800mm	400×400mm	30/37/44kW	Manual Valve operationorPLC contrl
	Y83/T-200B		1600×1200×800mm	400×400mm
	Y83/T-200D		1600×1200×900mm	400×400mm
	Y83/T-200E		1800×1400×800mm	450×450mm
	Y83/T-200F		1800×1400×900mm	450×450mm
3	Y83/T-250A	2500kN/250t	2000×1400×900mm	450×450mm	44/60kW
	Y83/T-250B		2000×1400×1000mm	500×500mm
	Y83/T-250C		2000×1750×1200mm	500×600mm
	Y83/T-250D		2500×1750×1200mm	500×600mm
	Y83/T-250E		2000×1750×1200mm	600×600mm	60/74kW
4	Y83/T-315A	3150kN/315t	2600×1750×1200mm	600×600mm	60/74kW
5	Y83/T-400	4000kN/400t	3000×2500×1300mm	600×600mm	90kW	Manual Valve operationorPLC contrl
5	Y83/T-400	4000kN/400t	3500×3000×1300mm	600×600mm	90kW	Manual Valve operationorPLC contrl
6	Y83/T-500	5000kN/500t	3000×2500×1300mm	700×700mm	135kW	Manual Valve operationorPLC contrl
			3500×3000×1300mm
			4000×3500×1300mm
7	Y83/T-800	8000kN/800t	3000×2500×1300mm	700×700mm 750×750mm	225kW	PLC contrl
			3500×3000×1300mm
			4000×3500×1300mm
